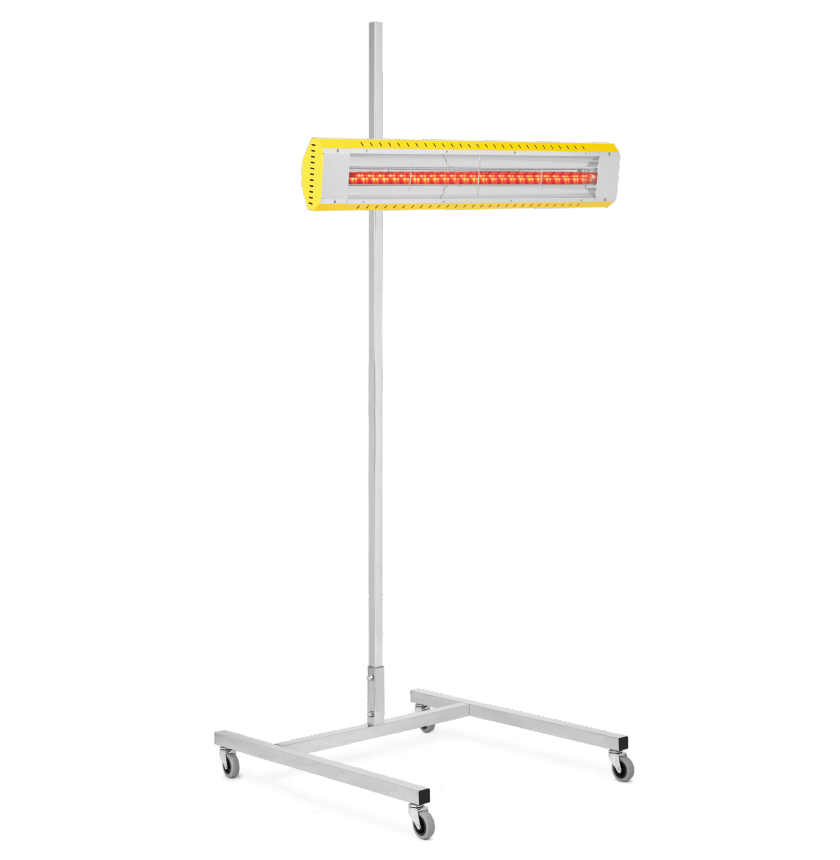

Model Speed Ray 2

Short Wave Systems model SPEED RAY 2

BACK

FASTER CURING TIMES — EVERY TIME.

Short Wave Systems feature halogen elements, which offer hotter, faster, more efficient heating capabilities. Infratech short wave systems range from 1,000 to 6,000 watts, with quality design features that provide long-term convenience and value.

Efficiency

Infrared heat offers significant cost benefits over convection heat. It reduces cycle times, focuses energy on the areas to be cured, and does not require expensive, insulated enclosures to trap and re-circulate heat.

Speed

Infratech’s exceptionally fast finish dry times are often one-quarter or more faster than air-drying. Infrared energy also requires little to no air-flow, thereby minimizing deposits of contaminants in a finish.

Intensity

Infratech Short Wave systems feature halogen bulbs that provide more efficient heating capabilities, with quality design made in the USA.

60 MINUTE TIMER FOR ENERGY SAVINGS

SPRING LOADED PIN FOR QUICK ADJUSTMENTS

LARGE CASTERS FOR ADDED MOBILITY

PRODUCT DETAILS
  • Part. No. 17-1015
  • 1,650 watts of curing power over a 3' x 4' coverage area enables this product to achieve faster production and shorter cure times

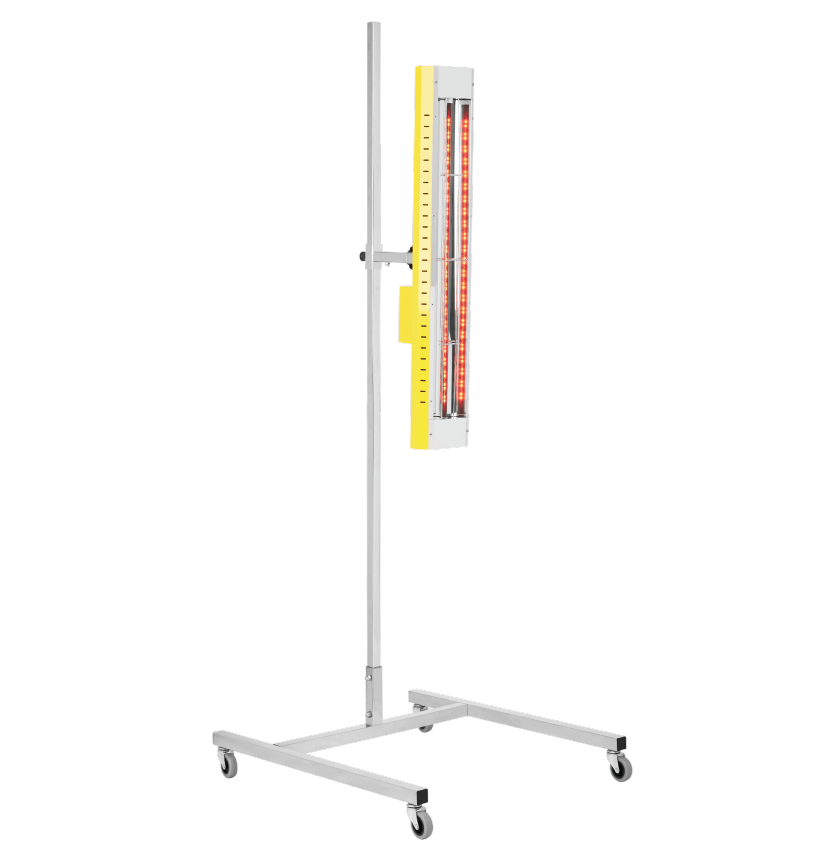

  • Vertical or horizontal operation enables this product to cure hard-to-reach areas
  • Product is designed with a 60-minute timer shut-down feature, for added energy savings
  • Heavy-duty 6' stand enables product to accommodate curing of hoods and roof lines

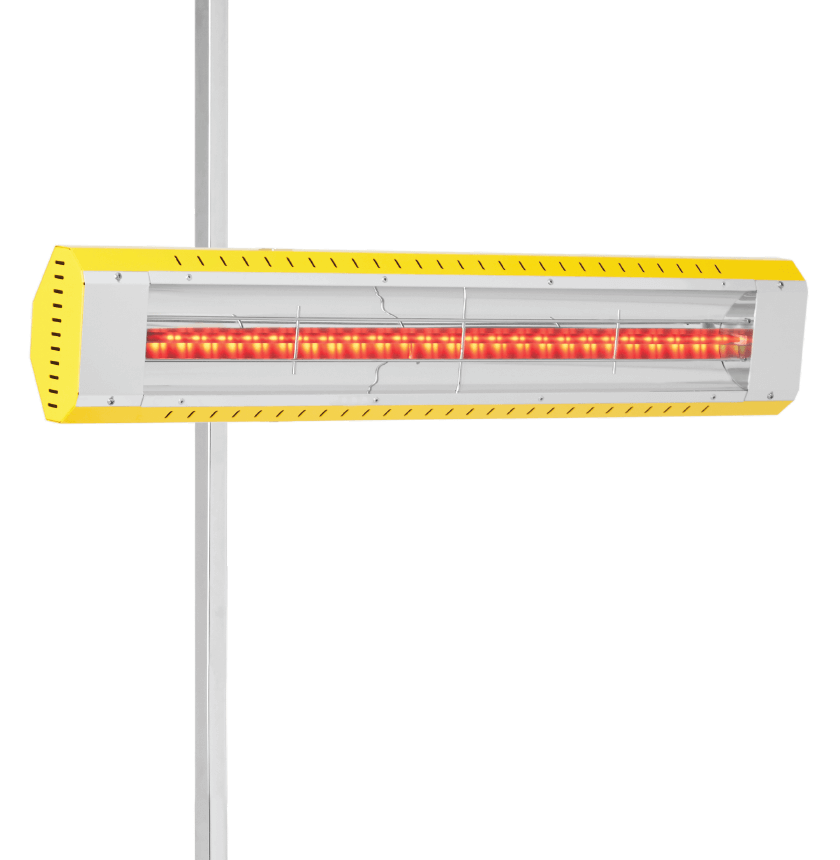

  • Includes iridium-filtered halogen element for reduced glare and added operator safety
  • Product features one full length heating element, providing more effective coverage and a lower replacement cost
  • Also available in 240 volts (Part No. 17-1017)
    • PRODUCT SHEET
    INSTRUCTIONS
    DOWNLOAD CATALOG
    DOWNLOAD SPANISH CATALOG
    SPECIFICATIONS
  • SPECIFICATIONS
  • 1,650 watts
  • 120 volts
  • 13.8 amps
  • 35" head
  • 25 lbs.
  • REPLACEMENT ELEMENT PART NO.
  • E-SR-2-120 (#17-1125)

    • Please Note: Part Numbers listed above represent element replacements for standard catalog units. Fixtures with different voltages may require a different part number. Please consult with your Infratech representative when making your order.

    COVERAGE AREA
